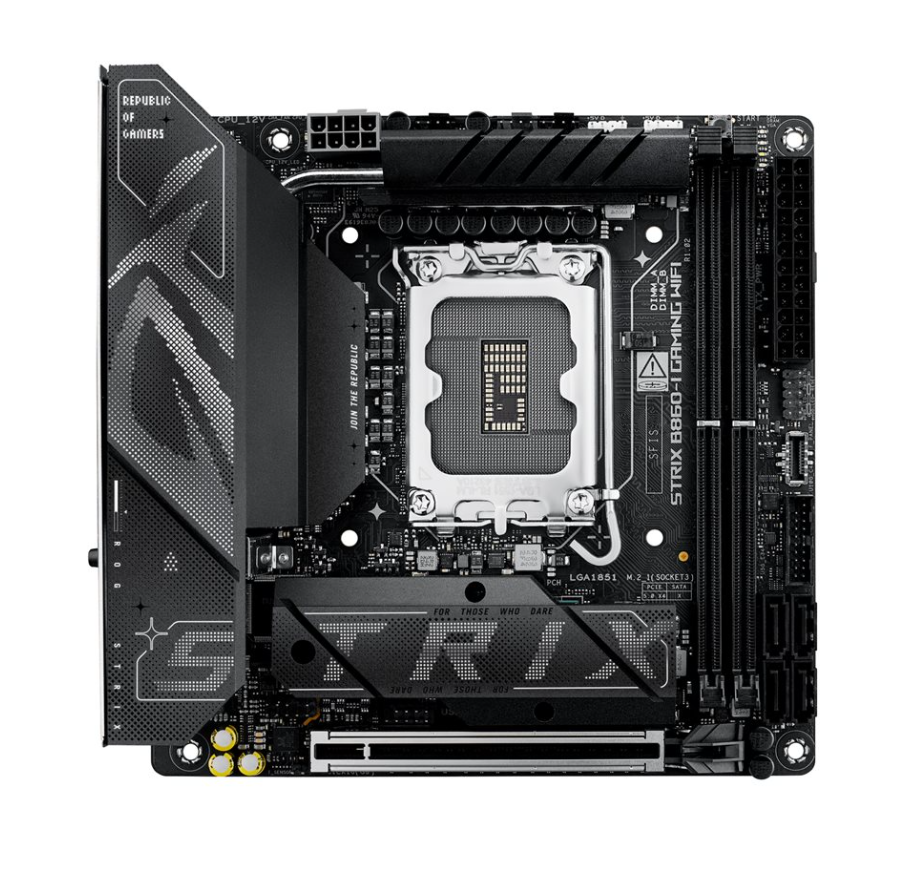

The ASUS ROG Strix B860-I Gaming WiFi, model 90MB1JB0-M0EAY0, is a compact mini ITX motherboard built around the Intel B860 chipset and LGA1851 processor socket. Designed for systems using supported Intel Core Ultra processors (Series 2), it provides a gaming-focused platform in a 17 cm by 17 cm form factor. The board supports one processor and combines DDR5 memory, PCIe 5.0 expansion, M.2 and SATA storage connectivity, integrated networking, eight-channel HD Audio and a broad selection of external and internal interfaces.
Memory support is provided through two 288-pin DIMM slots with a maximum supported capacity of 128 GB. The motherboard uses DDR5 non-ECC, unbuffered and clocked unbuffered memory, with listed bus speeds reaching 4533 MHz when overclocked. Its dual-channel memory architecture is complemented by Intel Extreme Memory Profiles (XMP), ASUS Enhanced Memory Profile (AEMP) III and CUDIMM support, giving compatible memory configurations access to the technologies supported by the platform.
For graphics cards and other compatible expansion hardware, the ROG Strix B860-I Gaming WiFi includes a PCIe 5.0 x16 slot. Storage options include four SATA-600 connectors and two M.2 sockets. One M.2 connection supports 2260 and 2280 M.2 Key M devices through PCIe 5.0, while the second accommodates 2242, 2260 and 2280 M.2 Key M devices through PCIe 4.0. The SATA subsystem supports RAID 0, RAID 1, RAID 5 and RAID 10, while Intel Rapid Storage Technology is also included among the motherboard's storage features. M.2 heatsinks, an M.2 heatsink backplate and ASUS M.2 Q-Latch hardware are incorporated to support installation and thermal management of compatible M.2 devices.
The board provides extensive peripheral connectivity despite its mini ITX dimensions. Its external connections include Thunderbolt 4, which is also identified in the supplied specifications as USB4, alongside USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, three USB 3.2 Gen 1 ports and two USB 2.0 ports. Internal headers extend connectivity with USB-C 3.2 Gen 2, two USB 3.2 Gen 1 connections and two USB 2.0 connections. A USB 2.0 splitter cable is also supplied. Display connectivity includes HDMI and DisplayPort, with onboard graphics functionality requiring a suitable CPU.
Networking options cover both wired and wireless connections. The motherboard has 2.5 Gigabit Ethernet as well as wireless support for IEEE 802.11a/b/g/n/ac/ax/be standards, including Wi-Fi 7, and Bluetooth 5.4. The supplied information also identifies Wi-Fi 6E support among the board's networking capabilities. Two aerial connections are provided, and an ASUS Wi-Fi Q-antenna is included in the package. ASUS AI Networking II forms part of the board's hardware feature set.
Audio is handled by an integrated Realtek ALC1220P codec, providing eight-channel HD Audio. The audio implementation complies with High Definition Audio and supports Dolby Atmos. External audio connections include a microphone mini-jack, an audio line-out mini-jack and an SPDIF output, while an internal audio header is also available. This integrated audio configuration is designed to provide the motherboard's sound functionality for gaming, music and other media without requiring a separate sound card.
Power delivery uses a 10+1+2+1 phase design and is accompanied by ASUS Extreme Engine Digi+, ASUS ProCool and 5K Black Metallic Capacitors. The board supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, while NPU Boost is also included. Power connections consist of a 24-pin main connector and an 8-pin ATX12V connector. Thermal hardware includes a VRM heatsink design as well as the M.2 heatsinks and M.2 heatsink backplate, providing dedicated cooling provisions for key motherboard components during demanding workloads.
ASUS has incorporated a wide collection of installation and system-building features into the compact design. These include ASUS EZ DIY, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, a CPU socket lever protector, PCIe Slot Q-Release, a pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED and Q-Slot. A Clear CMOS button is provided, while the DIY Friendly Design feature set and M.2 Q-Latch are intended to support straightforward component installation and system maintenance.
Lighting support is provided through ASUS Aura Sync, allowing compatible RGB lighting to be customised and coordinated through the ASUS ecosystem. Firmware is based on an AMI BIOS with UEFI BIOS functionality, ASUS EZ Flash and ASUS UEFI BIOS EZ Mode. ROG CPU-Z is included among the motherboard's listed hardware features and is also supplied as part of its software selection.
The supplied software collection includes Armoury Crate, ASUS AI Advisor, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, HWiNFO, TurboV Core and ROG CPU-Z. Trial software consists of Adobe Creative Cloud as a free trial, AIDA64 Extreme with a 60-day trial, Norton 360 for Gamers with a 60-day trial and WinRAR with a 40-day trial.
The motherboard is supplied in a box with accessories and cabling for installation and setup. Included items comprise the ASUS Wi-Fi Q-antenna, cable ties, an M.2 bracket, an M.2 Q-Latch, an M.2 screw package, a ROG key chain and a ROG Strix sticker. The cable package contains two Serial ATA cables, one USB 2.0 splitter cable and one panel cable. Together with the ASUS ROG Strix B860-I Gaming WiFi motherboard itself, these items form the stated package contents.
