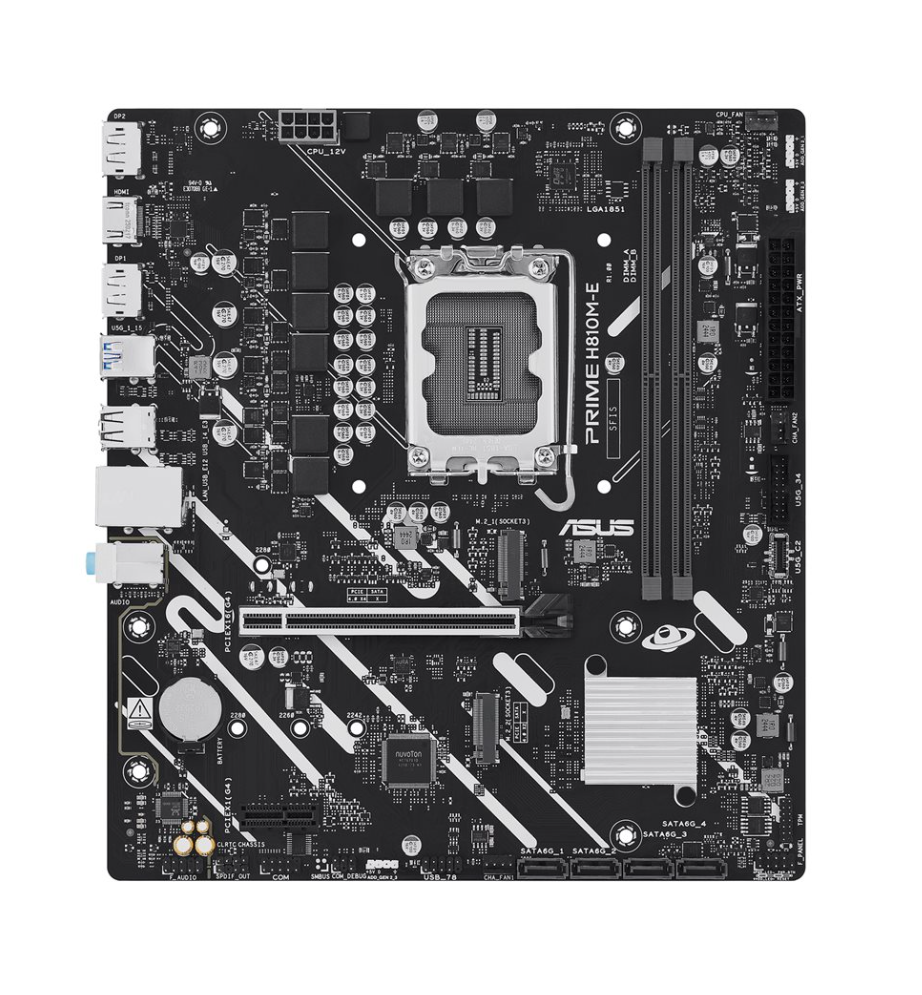

The ASUS PRIME H810M-E-CSM (90MB1N20-M0EAYC) is a micro ATX motherboard built around the Intel H810 chipset and LGA1851 processor socket. It supports a single Intel Core Ultra processor from Series 2 and provides a compact foundation for a versatile computer system. As an ASUS Corporate Stable Model (CSM) product, it combines the platform's essential processor, memory, storage, networking, audio and expansion capabilities within a board measuring 24.4 cm wide and 22.2 cm deep.
Memory support is provided through two 288-pin DIMM slots for up to 128 GB of DDR5 SDRAM. The motherboard accepts non-ECC, unbuffered memory at speeds of up to 6400 MT/s and uses a dual-channel memory architecture. Intel Extreme Memory Profiles (XMP) and ASUS Enhanced Memory Profile (AEMP) II are also supported, providing compatible memory configurations with access to the platform's available memory performance features.
Expansion and storage connectivity include one PCIe 4.0 x16 slot, one PCIe 4.0 x1 slot and two M.2 sockets. One M.2 socket accommodates 2280 devices, while the second is an M.2 Key M socket supporting 2242, 2260 and 2280 sizes. The storage interfaces comprise two PCIe 4.0 M.2 connections alongside four SATA-600 connectors for Serial ATA devices, with RAID support included for the SATA storage ports. This combination provides options for both M.2 and conventional Serial ATA storage within the same system.
A broad selection of external connections is available for displays, peripherals, networking and audio. The rear interfaces include two USB 3.2 Gen 1 ports, four USB 2.0 ports, one HDMI connection and two DisplayPort connections. Onboard graphics output is available when a suitable CPU providing graphics capability is installed. Wired networking is supplied through a Gigabit Ethernet LAN interface, while three mini-jack connections provide audio line-in, audio line-out and microphone connectivity.
Additional connectivity can be brought to a compatible chassis through the motherboard's internal headers. These comprise one USB-C 3.2 Gen 1 header, two USB 3.2 Gen 1 headers and two USB 2.0 headers, together with serial, audio, SPDIF output and SPI headers. Power is supplied through a 24-pin main motherboard connector and an 8-pin ATX12V connector.
The integrated audio system supports High Definition Audio with eight-channel output. This gives the motherboard multichannel HD Audio capability for systems intended for applications such as multimedia and gaming, while maintaining support for standard line-level input and output as well as a dedicated microphone connection.
ASUS incorporates an aluminium heatsink design and a dedicated chipset heatsink to assist with temperature management during demanding operation. The motherboard uses a 6+1+1+1 phase power design and includes ASUS DIGI+ VRM. Its additional hardware technologies include ASUS 5X Protection III, LANGuard, overvoltage protection, ASUS SafeSlot Core+ and an ASUS stainless-steel back I/O implementation.
System assembly, configuration and upgrades are supported by ASUS Q-Design and ASUS EZ DIY functionality. The available Q-Design features include Q-Dashboard, Q-LED Core and Q-Slot, providing ASUS installation and system-management features intended to make working with the motherboard more straightforward. ASUS Aura Sync is also supported.
The motherboard uses an AMI BIOS with ASUS EFI BIOS and ASUS EZ Flash functionality. Wake on LAN (WOL) is supported for compatible network-based wake-up configurations. Processor-related technologies listed for the board include Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0.
The ASUS PRIME H810M-E-CSM is supplied with an I/O shield, one M.2 anchor, an ACC Express Activation Key Card and two Serial ATA cables. Its included software selection consists of Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS DriverHub and ASUS CPU-Z, along with a 60-day trial of Norton 360 Deluxe and a 40-day trial of WinRAR.
