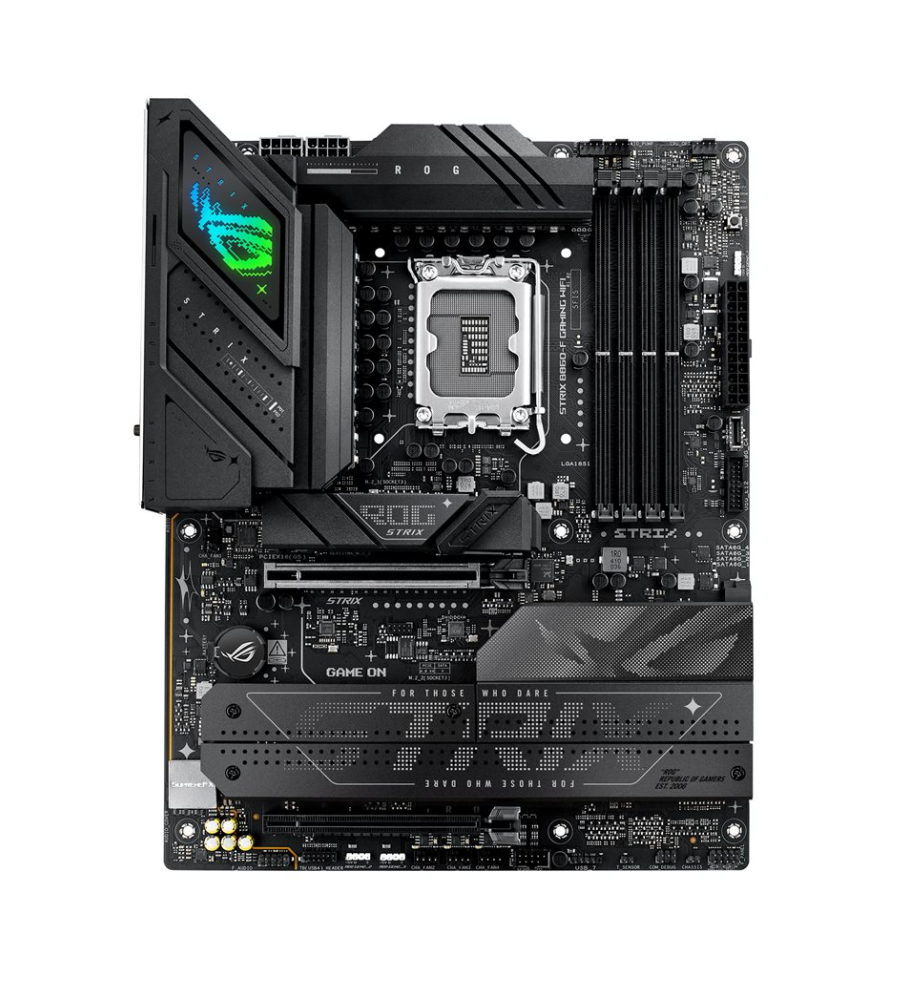

The ASUS ROG Strix B860-F Gaming WiFi, model 90MB1JG0-M0EAY0, is an ATX motherboard built around the Intel B860 chipset and LGA1851 processor socket. Designed for Intel Core Ultra processors from Series 2, it provides a comprehensive foundation for gaming and demanding computing systems, combining DDR5 memory support, high-bandwidth PCIe expansion, extensive storage connectivity, integrated networking, onboard graphics connectivity when used with a suitable CPU, and eight-channel high-definition audio.
Memory support is provided through four 288-pin DIMM slots with a maximum installed capacity of 256 GB. The board uses DDR5 non-ECC, unbuffered and clocked-unbuffered memory, with a stated bus clock of up to 4533 MHz when overclocked. Its dual-channel memory architecture is complemented by Intel Extreme Memory Profiles (XMP), ASUS Enhanced Memory Profile III and CUDIMM support, providing a memory platform designed to accommodate high-performance configurations and supported memory tuning features.
Expansion capability includes a PCIe 5.0 x16 slot alongside a PCIe 4.0 x16 slot operating in x4 mode. This combination provides connectivity for graphics hardware and additional PCIe devices while supporting both PCIe 5.0 and PCIe 4.0 technologies. Storage expansion is equally extensive, with four M.2 sockets in addition to four SATA-600 connections. The M.2 configuration consists of two sockets for 2280 M.2 Key M devices, one socket accepting 2242, 2260 or 2280 M.2 Key M devices, and another supporting 2280 or 22110 M.2 Key M hardware.
The storage architecture provides one PCIe 5.0-connected M.2 interface and three PCIe 4.0-connected M.2 interfaces. Four seven-pin Serial ATA connections support SATA-600 storage, while RAID 0, RAID 1, RAID 5 and RAID 10 configurations are supported. Intel Rapid Storage Technology is also included. ASUS equips the motherboard with M.2 heatsinks, an M.2 heatsink backplate and a VRM heatsink design to help manage temperatures around important motherboard components during demanding workloads.
External connectivity covers a broad selection of modern and established interfaces. The rear connectivity includes Thunderbolt 4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2 and six USB 3.2 Gen 1 connections, along with HDMI and DisplayPort outputs for onboard graphics functionality when a compatible CPU provides the required graphics capability. Network connections include 2.5 Gigabit Ethernet as well as wireless connectivity through Wi-Fi 7, supporting the 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax and 802.11be standards. Bluetooth 5.4 is also integrated, and two aerial connections are provided for the wireless antenna system.
Additional USB connectivity can be brought to a system chassis through the motherboard's internal headers. These comprise a USB-C 3.2 Gen 2 header, two USB 3.2 Gen 1 headers and three USB 2.0 headers. An internal Thunderbolt 4 header and an audio header are also present. Across the stated USB and FireWire port configuration, the motherboard provides one USB4 connection, one USB-C 3.2 Gen 2x2 connection, one USB 3.2 Gen 2 connection and six USB 3.2 Gen 1 connections externally, with one USB-C 3.2 Gen 2, two USB 3.2 Gen 1 and three USB 2.0 connections available through headers.
Audio is handled by the Realtek ALC4080 codec, delivering eight-channel HD Audio that complies with High Definition Audio and Dolby Atmos standards. This integrated audio implementation is intended to support both gaming and multimedia sound. The available audio interfaces include a microphone mini-jack, an audio line-out mini-jack and an SPDIF output.
System setup and firmware management are handled through an AMI BIOS with ASUS UEFI BIOS functionality. ASUS EZ Flash and ASUS UEFI BIOS EZ Mode are included to provide firmware updating, configuration and monitoring capabilities. A dedicated BIOS FlashBack button and BIOS FlashBack LED are also incorporated, alongside a Clear CMOS button for system configuration management.
The board incorporates a wide collection of ASUS hardware technologies and installation features. Its power design uses a 16+1+2+1 phase arrangement with 80A power stages and is accompanied by ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors and ASUS ProCool. Processor-related technologies include Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0 and NPU Boost. Power is supplied through a 24-pin main motherboard connector and two 8-pin ATX12V connectors.
ASUS Q-Design and ASUS EZ DIY features are incorporated to assist with system assembly and component handling. These include M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Release Slim, Q-Antenna, Q-Dashboard and Q-Slot. The motherboard also features a CPU socket lever protector, a pre-mounted I/O shield, ASUS SafeSlot and ASUS SafeDIMM. Customisable ASUS Aura Sync lighting support is included for compatible lighting configurations.
The motherboard measures 30.5 cm wide and 24.4 cm deep and is supplied in a box. Included hardware and accessories consist of an ASUS Wi-Fi Q-antenna, two Serial ATA cables, cable ties, an M.2 Q-Latch, an M.2 Q-Slide, a ROG key chain, a ROG Strix sticker and four M.2 rubbers.
A collection of software is also supplied with the ASUS ROG Strix B860-F Gaming WiFi. This includes Armoury Crate, ROG CPU-Z, ASUS Fan Xpert 4, HWiNFO, ASUS GlideX and TurboV Core. Time-limited software comprises a 60-day trial of AIDA64 Extreme, a one-month trial of Adobe Creative Cloud, a 60-day trial of Norton 360 for Gamers and a 40-day trial of WinRAR.
