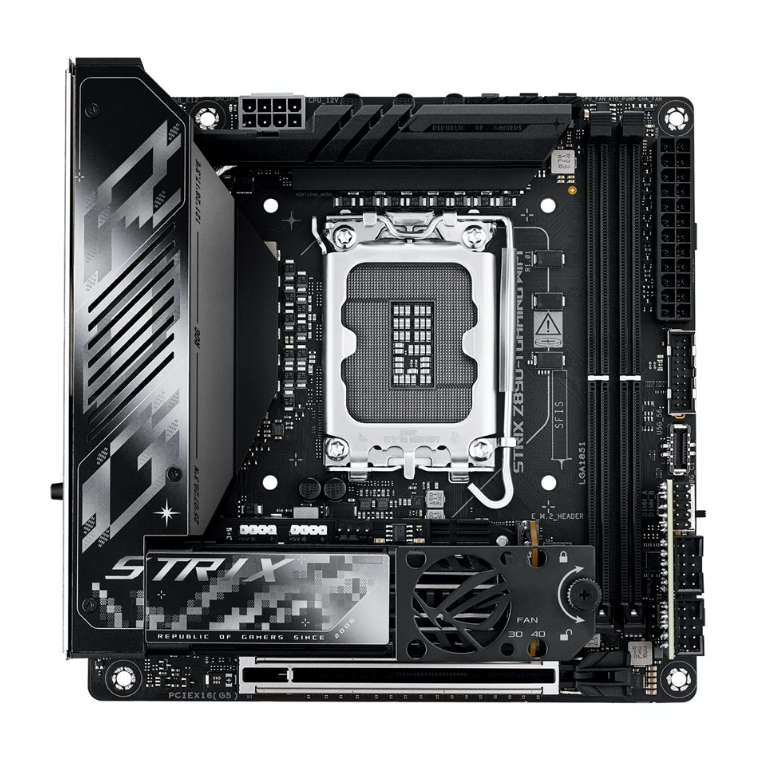

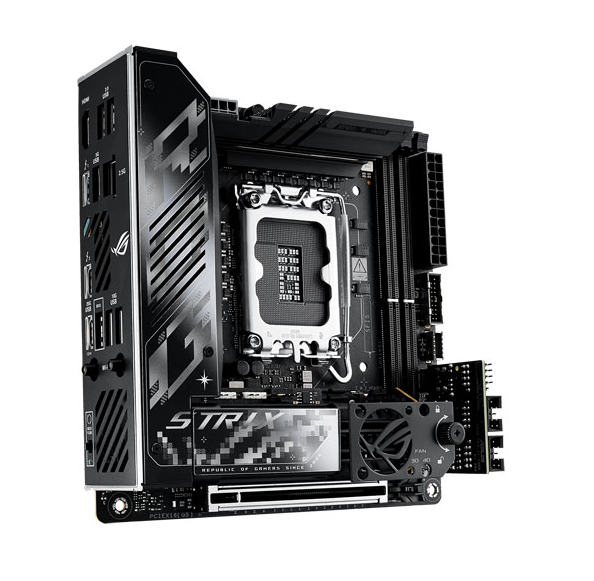

ASUS ROG STRIX Z890-I GAMING WIFI (90MB1IC0-M0EAY1)
ASUS ROG STRIX Z890-I GAMING WIFI - Motherboard - mini ITX - LGA1851 Socket - Z890
Overview
The ASUS ROG STRIX Z890-I GAMING WIFI motherboard offers high-definition audio courtesy of its SupremeFX (ALC4080) sound card, ensuring a rich sound experience, thanks to support for Dolby Atmos. With a compact mini ITX form factor, this motherboard is versatile for powerful builds. It supports Intel Core Ultra processors and includes features like dual-channel memory architecture that supports DDR5 SDRAM with speeds up to 4600 MHz (O.C.).
For connectivity, the board is equipped with multiple USB ports, including USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, and Thunderbolt 4 for high-speed data transfer. The integration of 2.5 Gigabit Ethernet and Wi-Fi 7 ensures fast and reliable network access, perfect for gaming and high-performance tasks. Additionally, features such as robust cooling solutions with M.2 heatsink design and Power Stage technology ensure stability during intensive workloads. The ASUS EZ DIY features allow for easier installation, while ASUS Aura Sync provides customizable RGB lighting to personalize your setup. With sufficient expansion slots, including PCIe 5.0 x16 and M.2 sockets, users can upgrade their system with ease.
Key Features
- Supports Intel Core Ultra processors
- High definition audio with Dolby Atmos support
- Multiple high-speed USB connectivity options
- Integrated 2.5 Gigabit Ethernet and Wi-Fi 7
- Robust cooling solutions ensure system stability
Product Features
Compact Design
The mini ITX form factor allows for installation in smaller cases while providing essential connectivity and expansion options.
Advanced Audio Technology
Features the SupremeFX (ALC4080) sound card that supports high-definition audio and Dolby Atmos for an immersive sound experience.
Extensive Connectivity Options
Includes multiple USB ports, including USB 3.2 Gen 2 and Thunderbolt 4, allowing for high-speed data transfer and device connectivity.
Enhanced Networking Capabilities
Comes with 2.5 Gigabit Ethernet and support for Wi-Fi 7, ensuring a fast and reliable network connection for gaming and streaming.
Robust Cooling Features
Integrates M.2 heatsinks and Power Stage technology to maintain thermal efficiency and performance during demanding tasks.
Main Specification
- Product Description: ASUS ROG STRIX Z890-I GAMING WIFI - motherboard - mini ITX - LGA1851 Socket - Z890
- Product Type: Motherboard - mini ITX
- Chipset Type: Intel Z890
- Processor Socket: 1 x LGA1851 Socket
- Compatible Processors: Supports Intel Core Ultra processors (Series 2)
- Max RAM Size: 96 GB
- RAM Supported: 2 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered
- Storage Ports: 4 x SATA-600 (RAID), 2 x M.2
- USB / FireWire Ports: 2 x USB4 + 1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 via headers)
- Audio: HD Audio (8-channel)
- LAN: 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2.5 Gigabit Ethernet
- Manufacturer Warranty: 3-year warranty
Extended Specification
General
- Product Type: Motherboard - mini ITX
- Chipset Type: Intel Z890
- Processor Socket: LGA1851 Socket
- Max Processors Qty: 1
- Compatible Processors: Supports Intel Core Ultra processors (Series 2)
Expansion / Connectivity
- Expansion Slots: 1 x CPU, 2 x DIMM 288-pin, 1 x PCIe 5.0 x16, 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
-
Storage Interfaces:
- SATA-600 - connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1
- PCIe 5.0 - connectors: 2 x M.2 - RAID 0 / RAID 1

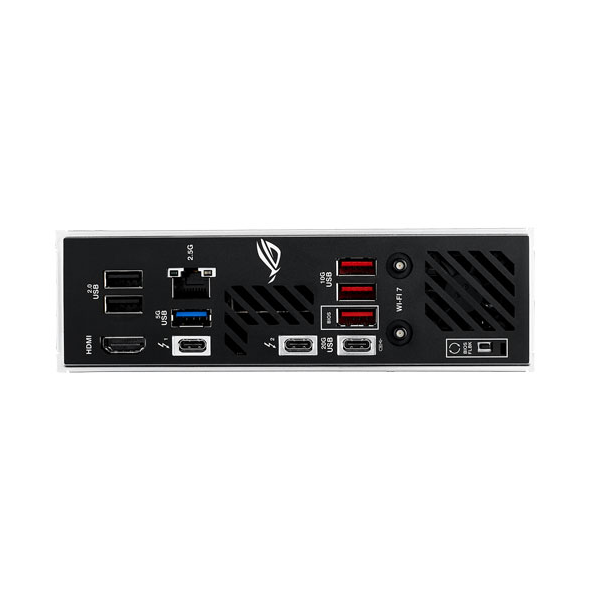

Interfaces
- 2 x Thunderbolt 4/DisplayPort/USB4
- 1 x USB-C 3.2 Gen 2x2
- 3 x USB 3.2 Gen 2
- 1 x USB 3.2 Gen 1
- 1 x HDMI
- LAN (2.5Gigabit Ethernet)
- 2 x Aerial
- 2 x USB 2.0
Internal Interfaces
- 1 x USB-C 3.2 Gen 2x2 - header
- 2 x USB 3.2 Gen 1 - header
Power Connectors
- 24-pin main power connector
- 8-pin ATX12V connector
Manufacturer Warranty
- Service & Support: Limited warranty - 3 years
Miscellaneous
- Included Accessories: ROG STRIX HIVE II, ROG FPS Card, ASUS Wi-Fi Q-antenna, cable ties, ROG key chain, ROG Strix sticker
- Cables Included: 2 x SATA Express cable, 1 x panel cable, 1 x USB 2.0 splitter cable
Software Included
- ROG CPU-Z
- Armoury Crate
- ASUS Fan Xpert 4
- Adobe Creative Cloud (free trial)
- AIDA64 Extreme (60 days trial)
- ASUS AI Advisor
- ASUS DriverHub
- ASUS GlideX
- HWiNFO
- Norton 360 for Gamers (60 days trial)
- ROG GameFirst Utility
- WinRAR (40 days trial)
Dimensions
- Width: 17 cm
- Depth: 17 cm
Audio
- Type: HD Audio (8-channel)
- Audio Codec: SupremeFX (ALC4080)
- Compliant Standards: High Definition Audio, Dolby Atmos
Features
- BIOS Type: AMI
- BIOS Features: UEFI BIOS, ASUS EZ Flash
- Sleep / Wake Up: Wake on LAN (WOL), wake on PME
Hardware Features
- Intel Turbo Boost Technology 2.0
- Intel Turbo Boost Max Technology 3.0
- ASUS Enhanced Memory Profile (AEMP) III
- BIOS FlashBack button
- BIOS FlashBack LED
- Water Pump Header
- 5K Black Metallic Capacitors
- ASUS Extreme Engine Digi+
- ASUS Q-Design
- M.2 heatsink
- M.2 heatsink backplate
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-Slot
- VRM heatsink design
- ASUS Aura Sync
- ASUS EZ DIY
- ASUS ProCool II
- CPU Socket lever protector
- Metal backplate
- Pre-mounted I/O shield
- SafeDIMM
- CrashFree BIOS 3
- NPU Boost
- 10+1+2+1 Phase Power Design
- 110A Power Stage
LAN
- Network Interfaces: 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2.5 Gigabit Ethernet
Supported RAM
- Max Size: 96 GB
- Technology: DDR5
- Bus Clock: 4600 MHz (O.C.)
- Supported RAM Integrity Check: Non-ECC, on-die ECC
- Registered or Buffered: Unbuffered
- Features: Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

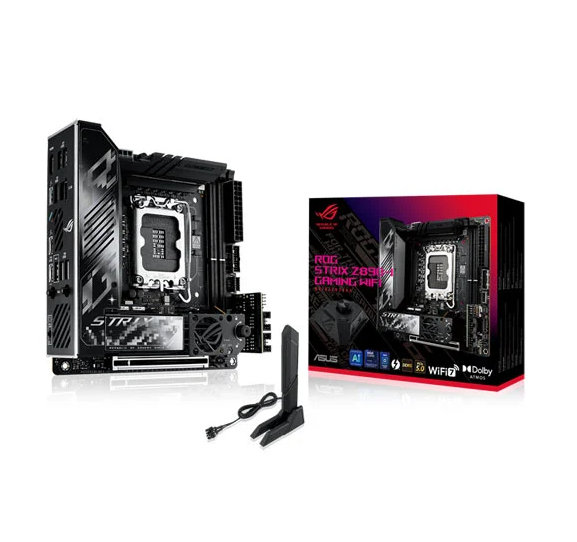

What is in the box?
- ASUS ROG STRIX Z890-I GAMING WIFI
- 2 x SATA Express cable
- Panel cable
- USB 2.0 splitter cable
- Cable ties
- ROG key chain
- ASUS Wi-Fi Q-antenna
- ROG Strix sticker
- ROG STRIX HIVE II
- ROG FPS Card
