SPARKLE Intel Arc B570 GUARDIAN (SB570G-10GOC)
Overview

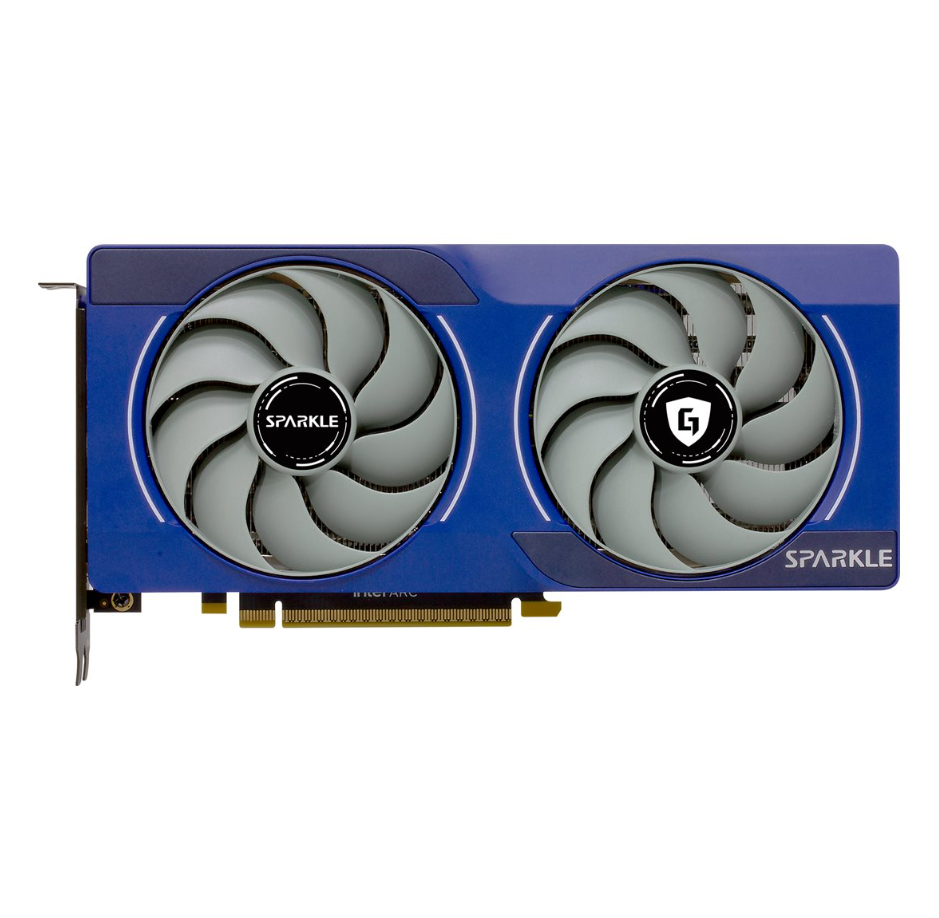

SPARKLE Intel Arc B570 GUARDIAN - OC Edition - graphics card - Arc B570 - 10 GB GDDR6 - PCIe 4.0 x16 - 3 x DisplayPort, HDMI
The SPARKLE Intel Arc B570 GUARDIAN OC Edition is a graphics card for gamers and content creators. With a robust 10 GB capacity GDDR6 SDRAM and a bandwidth of 380 GBps, this card delivers performance for demanding applications. The Intel Arc B570 processor supports multiple APIs including DirectX 12 Ultimate and Vulkan 1.3, ensuring compatibility with modern games and software applications.
Featuring multiple output ports, including 3 DisplayPorts and an HDMI port, the B570 GUARDIAN allows for high-resolution gaming and multitasking. It supports a maximum external resolution of 7680 x 4320, enabling visuals on compatible displays. Features like Adaptive-Sync, Ray Tracing, and variable rate shading provide enhanced gaming experiences, while the TORN cooling 2.0 system keeps the card cool during intense gameplay sessions.
Key Features
- 10 GB GDDR6 SDRAM for smooth performance
- Maximum external resolution of 7680 x 4320
- Supports multiple modern APIs for compatibility
- Cooling technology for optimal temperature control
- Adaptive-Sync and Ray Tracing support for enhanced gaming
Product Features
Efficient power consumption
The B570 GUARDIAN operates at a power consumption of 170 watts, allowing for high performance without excessive energy use.
Versatile output options
Equipped with 3 DisplayPorts and 1 HDMI port, this graphics card supports a variety of display configurations.
Impressive boost clock speed
With a boost clock speed of 2660 MHz, the B570 GUARDIAN is built to handle intensive graphic tasks efficiently.
Support for high refresh rates
Enjoy fluid motion in gameplay with a V-Sync rate of 120 Hz at max resolution on HDMI.
Robust architectural design
The graphics processor features 144 Intel XMX engines and 18 Ray Tracing Units, providing capabilities for rendering and real-time graphics.
Main Specification
- Product Description: SPARKLE Intel Arc B570 GUARDIAN - OC Edition - graphics card - Arc B570 - 10 GB
- Device Type: Graphics card
- Bus Type: PCI Express 4.0 x16 (x8 mode)
- Graphics Engine: Intel Arc B570
- Memory: 10 GB GDDR6
- Boost Clock: 2660 MHz
- Memory Interface: 160-bit
- Max Resolution: 7680 x 4320
- Max Resolution Details: DisplayPort: 7680 x 4320 at 60 Hz / HDMI: 7680 x 4320 at 120 Hz
- Interfaces Details: HDMI ¦ 3 x DisplayPort
- API Supported: DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 3.0
- Dimensions (WxDxH): 24.2 cm x 10.5 cm x 4.4 cm
Extended Specification
General
- Device Type: Graphics card
- Bus Type: PCI Express 4.0 x16 (x8 mode)
- Graphics Engine: Intel Arc B570
- Boost Clock: 2660 MHz
- Max Resolution: 7680 x 4320 at 120 Hz
- Max Resolution Details: DisplayPort: 7680 x 4320 at 60 Hz / HDMI: 7680 x 4320 at 120 Hz
- Interfaces Details: HDMI ¦ 3 x DisplayPort
- API Supported: DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 3.0
Features
- 18 Xe Cores
- 18 Ray Tracing Units
- 144 Intel XMX engines
- TORN cooling 2.0
- Metal backplate
- Ray Tracing
- Variable rate shading (VRS)
- Adaptive-Sync
- AV1 decode support
- AV1 encode support
- VP9 support
- Intel Deep Link Technology
- Axial fans
Memory
- Size: 10 GB
- Technology: GDDR6 SDRAM
- Bus Width: 160-bit
- Bandwidth: 380 GBps
Miscellaneous
- Power Consumption Operational: 170 Watt
- Width: 24.2 cm
- Depth: 10.5 cm
- Height: 4.4 cm
- Weight: 796 g
System Requirements
- OS Required: Windows 11, Windows 10
- Required Power Supply: 600 W
- Additional Requirements: 8 pin PCI Express power connector
